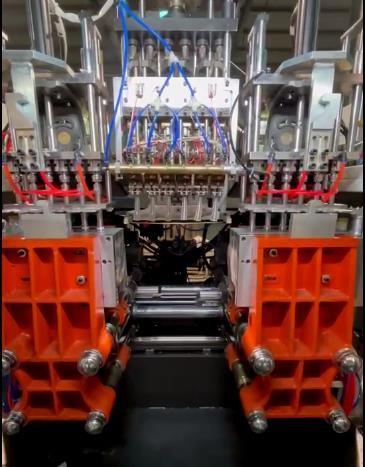

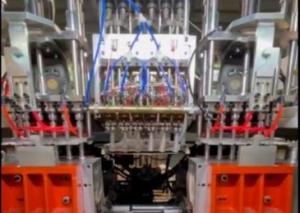

6 heads Extrusion Blow Molding Machine For yoghurt or milk Bottle
Introduction:
MP70D-6 is specifically designed for making yoghurt or milk bottle. It is hydraulic driven with accrate eletrical control system. MP70D-6 has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 20 years of success in the market, MP70D-6 is updated to be one of the most reliable and popular model in the world.
CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY
All MEPER machines is equipped in standard with easy operational TECHMATION control system . MOOG 100 points Parison Control is also optional based on different requirements.
ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM
MP70D-6 is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.
Standard Features:
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
| MP70D-6 Double station blow molder with horizontal linear mould shuttle |
| | Length: | 3600mm |
|
| | Width: | 2200mm |
| | Height | 2360mm |
| | | |
| Key Data | | MP70D |
| | | mm |
| Linear mould stroke | A | 450 |
| Mould Width | B | 430 |
| Mould Length | C | 350 |
| Mould Thickness | D | 190 |
| Opening Stroke | E | 290 |
| | | | | |
| Platen daylight | D+E | 480 | | |
| Clamping Force | | 75kN | | |
| Dry Cycle | | 7 sec. | | |
| Centre Distance | 2x2 fold | 160 | | |
| | 2x3 fold | 120 | | |
| | 2x4 fold | 100 | | |
| | 2x6 fold | 60 | | |
| | | | | |
| Extruder | | φ70 | φ75 | φ80 |
| Screw Speed | r/min | 0~65 | 0~65 | 0~65 |
| Screw Diameter | mm | 70 | 75 | 80 |
| Screw L/D Ratio | L/D | 24 | 24 | 24 |
| | | | | |
| Energy Requirements | | | | |
| Extruder Inverter Power | kW | 18.5 | 22 | 30 |
| Extruder Moter Power | kW | 18.5 | 22 | 30 |
| Srew Heating Power | kW | 12.7 | 14.4 | 15.85 |
| Fan Power | kW | 0.14X2 | 0.14X2 | 0.14X2 |
| Oil pump Motor Power | kW | 9.5 | 9.5 | 9.5 |
| Total Power of Machine | kW | 49.14 | 54.34 | 63.79 |
| Air Requirement approx | m3/min | 1.2 | 1.2 | 1.2 |
| Air Working Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| | | | | |
| Cooling Requirements | | | | |
| Consumption Cooling Water | L/min | 40 | 40 | 40 |
